We supply full range of galvanized wires for Mesh Netting, Fencing, Nails, Hangers, Barbed Wires, Tie Wires, PC Strand and other uses. Common round wire and shaped wire ( flat, oval) for specific applications. Iron wire or black wire going through galvanizing process gains corrosion resistance and durability which make it suitable for outdoor uses.
OUR CAPABILITIES
Standard Galvanized Wire and Heavily Galvanized Steel Wire
Diameter from 0.70m up to 10.00mm drawn from low and high carbon steel.
Galvanized steel wires according to chemical components:
Low carbon steel wire, 0.25% carbon content max.;
Medium carbon steel wire, 0.25-0.60% carbon content min.;
High carbon steel wire, 0.60% carbon content min;
Alloy steel wires.
Galv. wires, according to final heat treatment:
Annealed wire
Quench tempering wire
Galv. wires according to processing:
Cold drawing wire;
Cold rolling wire;
Hot drawing wire;
Straightening wire;
Polished wire and ground wire.
Tensile strength:
Low strength wire, 500 to 800 MPa above;
General strength wire, 800 to 1000 MPa above;
High strength wire, 1000 to 2000 Mpa above;
Higher strength wire, 2000 to 3000 MPa above;
Extra high strength wire, 3000 MPa above.
Galvanized Wire, with different galv. processing and materials:
Zinc coated wire, electro galv.
Zinc coated wire, hot dipped galvanized
Aluminium
+ zinc coated wire, or Galfan galv
Galvanised wire, PVC, vinyl, poly powder coated
Electro / electric galvanized wire, also known as cold galvanised wire. Electroplating is achieved by placing the zinc ingots and wire in a liquid bath energized at a current. Under the magnetic field, the zinc atoms lose electrons to become ions, free out of the zinc block, gradually adsorbed onto the steel wire object to be plated. Cold galvanized layer is extremely thin, usually only 3-15 microns. Gi wires electro zinc plated is also called light galvanised wire.
Hot dipped galvanized wire also known as thermal zinc plating galvanizing wire. Thermal zinc plating or hot dip plating is made by placing the steel wire immersed in a liquid bath of hot melt zinc. The zinc layer is formed through intense high-temperature chemical reaction process. Hot-dip galvanizing layer is thick, the minimum thickness is 45 microns, maximum up to 300 microns. Hot dipped zinc plated wire is also called heavily galvanised wire, it offers better corrosion resistance, compared with lightly galv. wire.
Zinc + Aluminum coated gi wire, also known as Galfan galv. wire, or Galfan wire
Galfan wire is coated with a zinc-aluminum layer of Zn-95%/Al-5%, or Zn-90%/Al-10%. In galfan coating, aluminum is added to the traditional zinc galvanising process for increased corrosion protection compared with pure zinc coating. Galfan wire offers superior corrosion resistance over electro galvanized wire and HDG wires.
PVC coated wire, or powder coated wire, is steel wire with double corrosion protection. Galvanized wires can be coated with pvc, poly, vinyl to become Powder Coated Wire. PVC and vinyl powder coated wires have super corrosion resistance, durability and more color choices.
Zinc Coating for Electro Galvanized Steel Wire:
| Size mm | （g/㎡）Min. zinc coating | |||||||
| A | AB | B | C | D | E | F | ||
| A1 | B2 | |||||||
| ≤0.25 | 18 | 15 | 12 | 5 | ||||
| 〉0.25-0.40 | 25 | 20 | 12 | 5 | ||||
| 〉0.40-0.50 | 25 | 20 | 15 | 8 | ||||
| 〉0.50-0.60 | 25 | 20 | 15 | 8 | ||||
| 〉0.60-0.80 | 20 | 15 | 10 | |||||
| 〉0.80-1.20 | 25 | 18 | 10 | |||||
| 〉1.20-1.60 | 25 | 18 | 12 | |||||
| 〉1.60-1.80 | 100 | 70 | 40 | 30 | 20 | |||
| 〉1.80-2.20 | 105 | 80 | 50 | 40 | 20 | |||
| 〉2.20-2.50 | 110 | 80 | 55 | 40 | 25 | |||
| 〉2.50-3.00 | 120 | 90 | 70 | 45 | 25 | |||
| 〉3.00-4.00 | 100 | 85 | 60 | 30 | ||||
| 〉4.00-5.00 | 110 | 95 | 70 | 40 | ||||
Zinc Coating for Hot Dipped Galv. Wire:
| Size (mm) | Min. zinc coating （g/㎡） | |||||||
| A | AB | B | C | D | E | F | ||
| A1 | B2 | |||||||
| ≤0.25 | 30 | 20 | 18 | |||||
| 〉0.25-0.40 | 30 | 25 | 20 | |||||
| 〉0.40-0.50 | 30 | 20 | ||||||
| 〉0.50-0.60 | 35 | 20 | ||||||
| 〉0.60-0.80 | 120 | 110 | 40 | 20 | ||||
| 〉0.80-1.00 | 150 | 130 | 45 | 25 | ||||
| 〉1.00-1.20 | 180 | 150 | 50 | 25 | ||||
| 〉1.20-1.40 | 200 | 160 | 50 | 25 | ||||
| 〉1.40-1.60 | 220 | 180 | 35 | 30 | ||||
| 〉1.60-1.80 | 220 | 180 | 70 | 40 | 30 | |||
| 〉1.80-2.20 | 230 | 200 | 80 | 50 | 40 | |||
| 〉2.20-2.50 | 240 | 210 | 80 | 55 | 40 | |||
| 〉2.50-3.00 | 250 | 230 | 90 | 70 | 45 | |||
| 〉3.00-4.00 | 270 | 250 | 100 | 85 | 60 | 30 | ||
| 〉4.00-5.20 | 290 | 270 | 245 | 110 | 95 | 70 | 40 | |
| 〉5.20-6.00 | 290 | 270 | 245 | 110 | 100 | 80 | 50 | |
Applications of Gal. Wires
Steel wire galv. is popularly used in:
Fencing wire
( welded fence, chain link fence, barbed fence, field fence)
Packaging wire
Net / mesh making wire
Rope wire
Chain wire
Cable reinforced wire or Armouring cable wire
Spring wire
Piano wire
Tyre wire
Rubber hose wire
Prestressed wire
Hot dipped galvanized low carbon steel wire
Electro galvanized low carbon steel wire
Galvanized wire barbed, for perimeter fencing tops
HTS wire for hinge knot field fencing uses
Galvanized steel wire used in construction rebar tying, hot dip zinc coated finish
Galvanised and green pvc coated wire
Annealed galvanized wire for binding uses
Stranded pc wire, prestressed wire for PC poles
Galvanised Mild Steel Wire in Coils
Wires exported to South Africa with the following specifications:
0.90mm/1.00mm lightly galvanised mild steel wire
Zn coating: 45 g/m2 minimum
Tensile strength: 500 MPa max
Packaging: Jumbo coils +- 300 kg
Wire for re-drawing to 0.22 mm

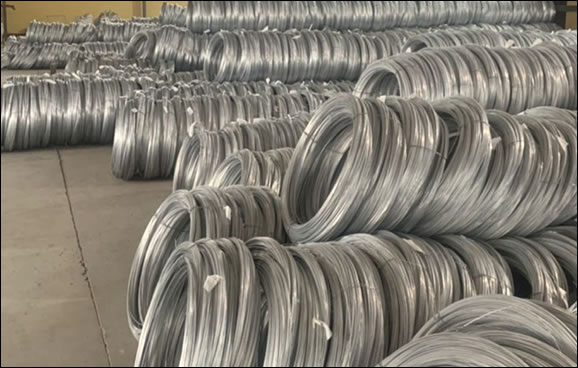

Galvanized wire coils
Wire gauge 20 (0.89mm)
Packed in 5kg/coil

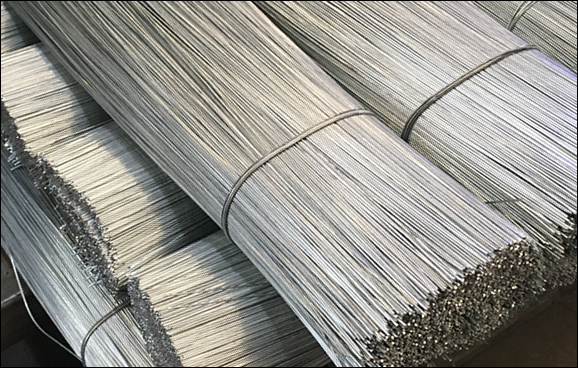

Galvanized Steel Wire, Precut
Galvanized wire precut, Gauge 20 (0.89mm), straightened and cut in length 300mm,350mm,400mm,500mm in 20kg carton box
Wires exported to Singapore
ASTM A 498 High Carbon Steel Galvanized Wire for Making Welded Mesh Fence
Size: 1.4mm, 1.5mm, 1.6mm
Surface: Shining smooth

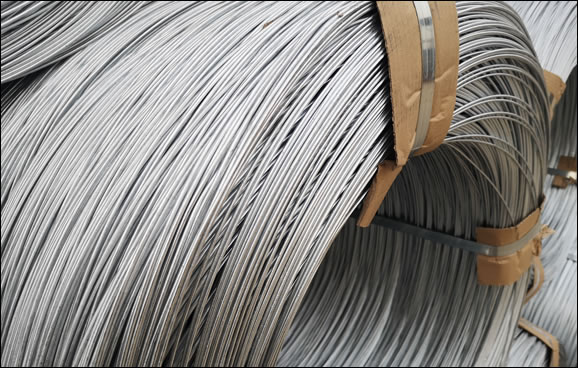

Galvanized HTS Wire, for Barbed Wire Fence Making
High tensile steel wire, size 1.6mm diameter with a tolerance of 0.02mm, tensile strength of 1200-1400N, weight of zinc coating min. 350gm/m2, gauge 12.5, packed in 25kgs roll
We also offer non galv. wire, and wires treated in different way other than galv. :
Iron Wire / MS wire, black or bright;
Aluminum coated steel wire / aluminized wire;
Copper coated wire;
Tin, chrome, or other alloy coated wire;
Stainless steel
.
Iron wire / steel wire
Oil Painted Black Iron Wire
Ungalvanized wire is widely used in wire products processing, mesh processing, especially for producing Wire Mesh, Galvanized After Weaving or Galvanized After Welding.
Aluminized wire
It is produced by hot dipped aluminum coating, immersing in molten aluminum. Alu coated wire is a high strength wire product suitable for outdoor applications: power distribution and data transmission support wires, chain link fencing wire, electric fence wire, horse fencing wire.
Copper / Brass coated steel wires
Copper coated wires, flat type, are used for stitching wire (0.7mm x 1.7 mm(TxW)
Brass coated steel wires for hose reinforcement, high tensile hose wire, from 0.15 up to 0.90 mm
We supply wire products with a variety of materials and finishes according to application and customer demands.
Write to us and we are always ready to help.
